2021年12月25日星期六

Printing industry Flying Splice Tape




Printing industry Flying Splice Tape

Product code: No.60L



Printing industryFlyingsplice tapes is high speed coater developed specifically for the advanced processes that present difficult splicing conditions found in coating, laminating, printing and converting.



These Flying splice tapes provide superior adhesion to “difficult-to-adhere-to” surfaces such as plastic films, polycoated paper and boards, and other low-energy surfaces. When splicing of film webs during high-speed flexo printing applications, It offering maximum efficiency in web preparation time. It also reduces waste on thinner films that are more tension sensitive.



In flexible packaging industry, Flying splice tapes for the critical and sensitive film qualities during automatic roll changes.It improves performance on the smooth films that are capable of gliding, and are designed for smooth processing at the highest of speeds on “form, fill and seal” systems.



Advantages

Slit liner for the secure fixation of the top sheet.

Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel.

Two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process.


Technical Data

Adhesive

High adhesion adhesive

Backing

Heat resistant paper

Liner

Slitting Glassine paper

Tape Thickness

120±5 um

Separatable Layer

110 um to 120 um

Tape color

Silver

Tack at 25

40-80N/25mm

Splicing speed

2,500m/min

Heat Resistance

-20-100



Application

Paper printing flying splice tape.

High-speed splicing tape for paper and film materials.

Flexographic printing flying splice tape.

Web printing flying splice tape.

Label and narrow web splicing tape.

Label stock splicingtape




Product code: No.DF5020



Label stocksplicing tape is high speed coater developed specifically for the advanced processes that present difficult splicing conditions found in coating, laminating, printing and converting.

Label stock is the carrier which is commonly coated on one side with adhesive and usually printed on the other side with adhesive and usually printed on the other side.

Label stock can be a wide variety of papers, films, fabric, foils. All of them are “difficult-to-adhere-to” surfaces.



Label line splicing tapes provide superior adhesion to above “difficult-to-adhere-to” surfaces. When splicing of film webs during high-speed flexo printing applications, It offering maximum efficiency in web preparation time. It also reduces waste on thinner films that are more tension sensitive.



Advantages

Slit liner for the secure fixation of the top sheet.

Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel.

Two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process.



Technical Data

Adhesive

High adhesion Black adhesive

Backing

Heat resistant paper

Liner

Slitting Glassine paper

Tape Thickness

50-100 um

Separatable Layer

110 um to 120 um

Tape color

Black

Tack at 25

30-50N/25mm

Splicing speed

2,500m/min

Heat Resistance

-20-100



Application

Label line flyingsplice tape.

High-speed splicing tape for label stock materials.

Label printing flying splice tape.

Web printing flying splice tape.

Label and narrow web splicing tape.



2021年12月13日星期一

Aluminum foil tapes manufacturer

 SLAA as the Aluminum foil tapes manufacturers in Shandong province, China. It covers the area of 12,000 square meters, occupies workshop and building more than 8,000 square meters, posses more than 50 workers. SLAA Tape operates out of a 5,000,000 sq. Meters facility each month. SLAA Tape equipped with 4 Coating adhesive products line and 8 cutting rolls machines.

HVAC tapes are single-faced adhesive tape of Aluminum Foil backing which is coated by Pressure-sensitive adhesive (PSA). De You HVAC Aluminum Foil Tape is use to Insulate and Seal HVAC Ductwork.

Aluminum Foil Tape bonds on contact as heat shielding inside an oven door. Helps keep the exterior cool to the touch behind the handle and around the window perimeter. Bonds on the inside of the stove top panel as glass panel explosion-proof tape.


Aluminum Foil Tape for range hoods sealing inside of the joint seams. Seal the duct work on a kitchen vent as duct installation and sealing.

With aggressive adhesive and dead soft aluminum, Aluminum Foil Tape seals and secures seams and joints for long-term durability. UL 723 classified for duct sealing and general repairs.

With conformability and chemical resistance, Aluminum Foil Tapes used to protect aircraft windows during paint stripping using harsh chemicals.

With high heat reflectivity and thermal conductivity, Aluminum Foil Tapes protect heat-sensitive components near lights in a garage door opener housing.

FSKFacing Tape is engineered specifically as a vapor retardant tape to seal mineral wool foil-faced insulation, bare sheet metal ducts and blanket style fiberglass duct insulation.

Tear-resistant Reinforced Aluminum Foil Tape bundles wire harnesses and helps protect wires, cables, and other flexible parts from heat.

Conformable Aluminum Foil Tape securely holds copper cooling tubes to refrigerator panels. Thermal conductivity helps maximize cooling efficiency.

To seal fiberglass duct board and flexible duct systems, Aluminum Foil Tape meets the performance requirements for UL 181A-P and UL 181B-FX.

Applied over holes and cavities in the interior of a car or truck door panel, Aluminum Foil Tape seals out moisture and dust.





2021年12月12日星期日

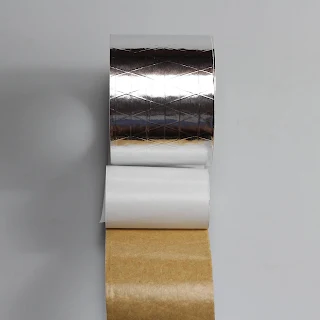

HVAC 2-way Foil Scrim Kraft Insulation Tape FSKR120170B




HVAC 2-way Foil Scrim Kraft Insulation Tape FSKR120170B

FSK-Foil scrim kraft backing

R-synthetic rubber resin adhesive

120-Backing thickness120um

170-Tape thickness170um

B-2 way scrim

PRODUCT DESCRIPTION

Foil-scrim-kraft (FSK) is a flame retardant, vapor-barrier, and it is one of the most commonly used facings in the insulation industry. High-strength foil-scrim-kraft paper all laminated together using a flame-retardant adhesive.

Foil Scrim Kraft Insulation Tape is FSK backing coated with synthetic Rubber resin adhesive, protected by an easy-release Silicone paper liner. It is also named FSK Insulation Jacketing Tape.

FSK Insulation Jacketing Tape is designed to seal FSK-facing fiberglass duct board and pipe insulation against moisture and vapor. It can also be used for patching rips and tears in foil-facing insulation and can be used with fiberglass duct wrap for added strength.



FEATURES

Durable FSK jacketing tape for sealing insulation.

High-strength foil-scrim-kraft paper laminate backing resists tearing.

Peel-back design for easy application.

High-tack synthetic rubber adhesive forms an instant bond.

Moisture-, mold-, and UV-resistant design.



TYPICAL PHYSICAL PROPERTIES

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

120Micron

4.8Mil

PSTC-133 / ASTM D 3652

Total Thickness

170 Micron

6.8Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

20N/25mm

72Oz./In.

PSTC-101 / ASTM D 3330

Tack Rolling Ball

15cm

6.0In.

PSTC-6 / ASTM D 3121

Tensile Strength

120 N/25mm

27.3Lb/In

PSTC-131 / ASTM D 3759

Elongation

2.0%

2.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

+10℃ to +40℃

+50℉ to +105℉





TYPICAL APPLICATIONS:

FSK tape is used for seam sealing and patching of FSK-faced duct wrap insulation, and other insulation applications where FSK facing is used, providing a matching appearance and vapor retarder integrity.

FSK insulation tape features an aggressive, all-weather acrylic adhesive that bonds tightly and permanently when smoothed down on the insulation facing surface. All Weather adhesive technology permits service temperatures of -22℉ to +176℉ (-30℃ to +80℃), and an application range of +50℉ to +105℉ (+10℃ to +40℃). It is primarily used for seam sealing and patching of FSK-faced duct wrap insulation.





ROLL SIZE:

Finish Roll:

50mm x 50m     2” x 55yds

75mm x 50m     3” x 55yds

Log Roll:   1200mm x 50m

Jumbo Roll: 1200mm x 900m



HVAC 3-way FSK Insulation Tape FSKR120170A




HVAC 3-way FSK Insulation Tape FSKR120170A

FSK-Foil scrim kraft backing

R-Rubber-resin adhesive

120-Backing thickness120um

170-Tape thickness170um

A-3 way scrim

PRODUCT DESCRIPTION

Foil-scrim-kraft (FSK) is a flame retardant, vapor-barrier, and it is one of the most commonly used facings in the insulation industry. High-strength foil-scrim-kraft paper all laminated together using a flame-retardant adhesive.

FSK Insulation Tape is FSK backing coated with synthetic Rubber resin adhesive, protected by an easy-release Silicone paper liner. It is also named FSK Insulation Jacketing Tape.

FSK Insulation Jacketing Tape is designed to seal FSK-facing fiberglass duct board and pipe insulation against moisture and vapor. It can also be used for patching rips and tears in foil-facing insulation and can be used with fiberglass duct wrap for added strength.



FEATURES

Scrim layer bends with the primary facing providing integrity to the insulation and a strong, finished, appearance.

Release liner provides easy removal for efficient application on the job site.

High-tack synthetic rubber adhesive forms an instant bond.

Moisture-, mold-, and UV-resistant design.



TYPICAL PHYSICAL PROPERTIES

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

120Micron

4.8Mil

PSTC-133 / ASTM D 3652

Total Thickness

170 Micron

6.8Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

25N/25mm

90Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

120 N/25mm

27.3Lb/In

PSTC-131 / ASTM D 3759

Elongation

1.0%

1.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

+10℃ to +40℃

+50℉ to +105℉





TYPICAL APPLICATIONS:

FSK tape is used for sealing HVAC duct seams and joints where FSK is the basic insulation facing. Foil scrim kraft (FSK) tape has a combined backing of aluminum foil, kraft paper, and fiberglass scrim. The combined backing properties result in a strong tape that provides a barrier against vapor. FSK tape is used for sealing and patching FSK ductwork and insulation and provides a finished look for exposed HVAC systems.



ROLL SIZE:

Finish Roll:

50mm x 50m     2” x 55yds

75mm x 50m     3” x 55yds

Log Roll:   1200mm x 50m

Jumbo Roll: 1200mm x 900m





HVAC 2-way Foil-Scrim-Kraft Tape FSKA120170B



HVAC 2-way Foil-Scrim-Kraft Tape FSKA120170B

FSK-Foil scrim kraft backing

A-Acrylic adhesive

120-Backing thickness120um

170-Tape thickness170um

B-2 way scrim

PRODUCT DESCRIPTION

Foil-scrim-kraft (FSK) is a flame retardant, vapor-barrier, and it is one of the most commonly used facings in the insulation industry. High-strength foil-scrim-kraft paper all laminated together using a flame-retardant adhesive.

HVAC Foil-Scrim-Kraft Tape is FSK backing coated with solvent-based acrylic adhesive, protected by an easy-release Silicone paper liner. It is also named FSK Insulation Jacketing Tape.

FSK Insulation Jacketing Tape is designed to seal FSK-facing fiberglass duct board and pipe insulation against moisture and vapor. It can also be used for patching rips and tears in foil-facing insulation and can be used with fiberglass duct wrap for added strength.



FEATURES

Scrim layer bends with the primary facing providing integrity to the insulation and a strong, finished, appearance.

Release liner provides easy removal for efficient application on the job site.

High-tack synthetic rubber adhesive forms an instant bond.

Moisture-, mold-, and UV-resistant design.




TYPICAL PHYSICAL PROPERTIES

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

120Micron

4.8Mil

PSTC-133 / ASTM D 3652

Total Thickness

170 Micron

6.8Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

25N/25mm

90Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

120 N/25mm

27.3Lb/In

PSTC-131 / ASTM D 3759

Elongation

1.0%

1.0%

PSTC-131 / ASTM D 3759

Service Temperature

-30℃ to +80℃

-22℉ to +176℉



Applying Temperature

+10℃ to +40℃

+50℉ to +105℉





TYPICAL APPLICATIONS:

FSK tape is used for sealing HVAC duct seams and joints where FSK is the basic insulation facing. Foil scrim kraft (FSK) tape has a combined backing of aluminum foil, kraft paper, and fiberglass scrim. The combined backing properties result in a strong tape that provides a barrier against vapor. FSK tape is used for sealing and patching FSK ductwork and insulation and provides a finished look for exposed HVAC systems.



ROLL SIZE:

Finish Roll:

50mm x 50m     2” x 55yds

75mm x 50m     3” x 55yds

Log Roll:   1200mm x 50m

Jumbo Roll: 1200mm x 900m
