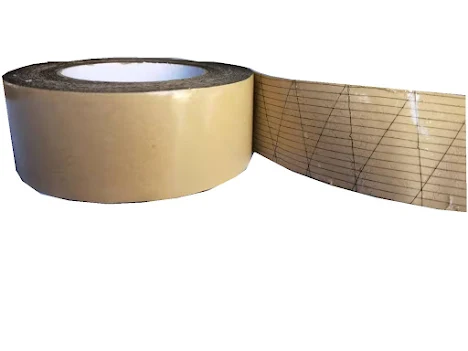

Transfer Tape with scrim Double Coated Tape with diagonal scrim carrier



Transfer Tape with scrim

Double Coated Tape with diagonal scrim carrier

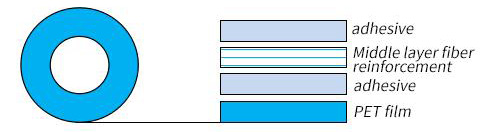

Adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. Normally Adhesive transfer tape has no carrier. Scrim reinforced adhesive transfer tapes has diagonal scrim as the carrier add stability. The transfer tape with scrim adds extra support to the adhesive. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside adhesive allow the adhesive to cleanly and completely transfer to uneven surfaces.



Recommended Applications

Automotive interior bonding: Nonwovens, Fabrics, Nameplates.

Large area lamination: Vinyl Wall base trims, Open and Closed cell foams, Vinyl stair treads, Various flooring materials.

Acoustic insulation, Wood, Plastic, Metal.





Support: PES / PVA DiagonalScrim

Adhesive Weight: 230-280g/m²

Total Thickness: 0.24mm

Temperature Resistance: -40 to +140°C

Adhesive Strength (Contact Time 1 Hour): Min 25 N/25mm

Liner:Kraft release paper, 110 gsm Double sided silicone

Peel Adhesion to Steel(Based on Afera 5001): 37N/25mm

Dynamic Shear Resistance(Based on FTM 18): 0.14N/mm²



Outdoor Tent Tarpaulin Repair Tape Aluminum foil fiberglass cloth



Outdoor Tent Tarpaulin Repair Tape Aluminum foil fiberglass cloth

Self Adhesive Repair Tape

Waterproof PE Coated Tape

Outdoor Tent Repair Tape

Tarp Tarpaulin Repair Tape

Damaged Canvas Repair Tape

Colored PET film + Aluminum foil + Glass cloth laminated backing coated with hot melt adhesive with released paper liner

Backing	Aluminum foil + Fiberglass Cloth
Adhesive	Rubber
Color	Blue, Green
Thickness	0.26mm
Width	5cm, 8cm,  Customized Width
Length	5m, 7.5m, Customized Length
Initial Tack	≥ 14#
180 Peel Strength	≥ 20N/25mm
Tensile Strength	≥ 30N/cm
Elongation	≥ 5%
Long Term Temp.	-20℃ - 100 ℃

Outdoor Tent Tarpaulin Repair Tape Knife scraper fiberglass cloth

 Self Adhesive Repair Tape

Waterproof PE Coated Tape

Outdoor Tent Repair Tape

Tarp Tarpaulin Repair Tape

Damaged Canvas Repair Tape

Tarp tape is a special repair tape for tarpaulin, Widely used to repair rips and tears on tarps, join tarps together or to reinforce weak points, Tarp Tape is tough and hardy.

Good adhesion, aging resistance, waterproof and sun protection.

Strong adhesion, the longer the time, the stronger the adhesion of the polymer. Long-lasting stickiness and tear resistance.

Backing	PE + Fiberglass Cloth
Adhesive	Acrylic
Color	Blue, Green
Thickness	0.55mm
Width	5cm, 8cm,  Customized Width
Length	5m, 7.5m, Customized Length
Initial Tack	≥ 10#
180 Peel Strength	≥ 30N/25mm
Tensile Strength	≥ 32N/cm
Elongation	≥ 15%
Long Term Temp.	-30℃ - 120 ℃



Sanding Belts Splicing Tape

Sanding Belts Splicing Tape

The butt splicing joint convert sanding cloth to a looped sheets products

Sanding belt splicing tape is also called abrasive belt splicing tape, abrasive belt joint tape, sanding belt joint tape, and abrasive belt butt tape.

Abrasive belts splicing tape: It has a wide range of applications of produce the abrasive belts. The splicing tape for butt splicing the sanding belts. When sanding belts manufacturer converting the sanding cloth to a looped sheets products, then use the the splicing tape to joint the sanding cloth.

The applicable range of each angle is ±1˚. For example, 67˚ tape is also suitable for abrasive belt joints with 66˚ and 68˚ cut angles. 75˚ tape is also suitable for abrasive belt joints with 74˚ and 76˚ cut angles.

The joint cutting angle of narrow belts is mostly 67˚, and the joint cutting angle of wide belts is mostly 75˚.

Other angles can also be made according to customer needs.

The standard width of tape: 19mm and 25mm. 19mm wide tape is widely used.

The standard length of tape rolls: 100 meters.

How to use Sanding belts splicing tape make the Abrasive belt joint?

 The manufacture of an endless abrasive belt from a roll of abrasive paper or abrasive cloth requires that both ends of the previously cut-to-length section of the roll be joint by Abrasive belts splicing tape permanently. The so-called belt joint usually runs at a 55˚, 57˚, 75˚ angle to the running direction of the belt in order to prevent an abrupt transition at the junction.

The abrasive backing (paper, cloth, plastic) used and the application (machine, contact element, work piece) determine the type of the Abrasive belts splicing tapes.

The butt splicing joint which is formed by two ends that abut each other and are joined by means of a narrow strip of Abrasive belts splicing tape on the reverse side of the belt.

Zig-zag joint with Sanding belts splicing tape on the reverse
Straight cut at an angle to the running direction of the belt with Sanding belts splicing tape on the reverse
Wave joint with Sanding belts splicing  tape on the reverse
